🏘 Game Resources

What are GameResources

• GameSuite's resource management system
• Everything is weak referenced and loaded through Guids

Advantages of using GameResources

• It takes all the complications out of loading, unloading and managing assets and memory
• Uniform way of accessing asset from Resources folders or Addressables
• Sync and Async loading support
• Works the same as any Library
• Supports AB Testing: swap, enable or disable any resource

Instantiating GameObjects

GameResources are basically a Library, so it can be used in the same way, showing a dropdown in the inspector, with the addition to drag and drop the object.

[Resource]
public Guid graphic;

There are a few different methods available, depending on what kind of asset needs to be loaded.

Instantiating a GameObject:

using GameSuite;

namespace Game
{
    public class GraphicSpawner : SerializedMonoBehaviour
    {
        [SerializeField, Resource]
        private Guid graphic;

        protected void Start()
		{
            // This spawns the graphic under the current transform.
            GameObject instance = GameResources.Instantiate(graphic, transform);
        }
	}
}

It is also possible to Instantiate asynchronously:

using GameSuite;

namespace Game
{
    public class GraphicSpawner : SerializedMonoBehaviour
    {
        [SerializeField, Resource]
        private Guid graphic;

        protected void Start()
		{
            // This is a fire and forget async instantiate:
            GameResources.InstantiateAsync(graphic, transform);

            // Or in case the object needs further processing:
            GameResources.InstantiateAsync(graphic, transform, GraphicSpawned);
        }

        private void GraphicSpawned(GameObject instance)
        {
            // Do something with the spawned instance here.
        }
	}
}

Instantiating sync and async supports different parameters:

// Spawns the graphic on the root.
GameResources.Instantiate(graphic);
// Spawns the graphic under the transform.
GameResources.Instantiate(graphic, transform);
// Spawns the graphic under the transform with translation.
GameResources.Instantiate(graphic, transform, position, rotation);

// The same parameters exist for the async methods.
GameResources.Instantiate(graphic, transform, position, rotation, callback);

Loading other types of objects

By default the [Resource] attribute will only allow GameObjects to be set as its the most common use case.
If it requires other types of resources, it can be done by passing a type:

[Resource]
public Guid Prefab;
[Resource(typeof(Material))]
public Guid Material;
[Resource(typeof(VideoClip))]
public Guid VideoClip;
[Resource(typeof(Animator))]
public Guid Animator;

[Resource(null, null)]
public Guid AnyResource;

Now that we have the resource the game needs, in order to load an asset of a certain type, use LoadAsset<T>:

Texture texture = GameResources.LoadAsset<Texture>(graphic);
// To unload it from memory:
GameResources.UnloadAsset(graphic);

There is also an asynchronous version available, just like with GameObjects:

using GameSuite;

namespace Game
{
    public class GraphicSpawner : SerializedMonoBehaviour
    {
        [SerializeField, Resource]
        private Guid graphic;

        protected void Start()
		{
            // Load the texture async:
            GameResources.LoadAssetAsync(graphic, TextureLoaded);
        }

        protected void OnDestroy()
        {
            // Force unload the graphic from memory.
            GameResources.UnloadAsset(graphic);
        }

        private void TextureLoaded(Texture texture)
        {
            // Do something with the spawned texture here.
        }
	}
}

Filter

The resource attribute allow to filter by type like, but also by folder.

[Resource("UI/Buttons")]
public Guid Button;

It also allows for filtering on both the type of resource and a sub folder:

[Resource(typeof(Animator), "Animations/Characters/Bosses")]
public Guid BossAnimator;

Resources

• Any assets in any folder named Resources is automatically included in the build and can be loaded.

Addressables

• Any asset tagged as addressable in the inspector, or any of the parent folders, is included in the build as part of an asset bundle
• Asset bundles can be baked into the build, uploaded to a CDN or both, allowing a fallback

Inspector dropdown

To only show a limited subfolder to select items in the resource dropdown, pass in a string as parameter to the Resource attribute:

[Resource("UI/Buttons"]
public Guid buttonGraphic;

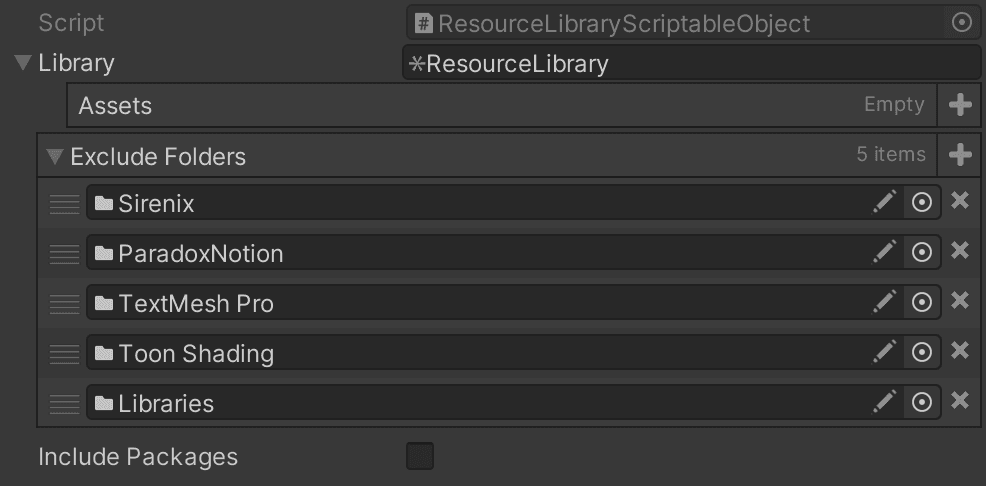

By default the dropdown shows all assets that can be accessed through Unity Resources and Addressables. To excluded project folders from the dropdown, add them to the Exclude Folders list on the ResourceLibrary asset in the project:

Debug Menu

There are multiple ways to interact and spawn GameResources using the Debug Menu, such as being able to spawn any GameObject:
Debug Menu > Project Explorer > Resource Loader Scenes are also able to load and unload from the same menu.

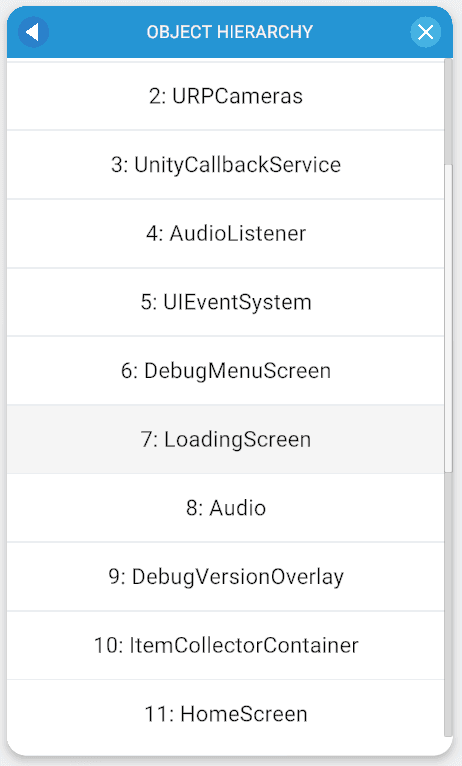

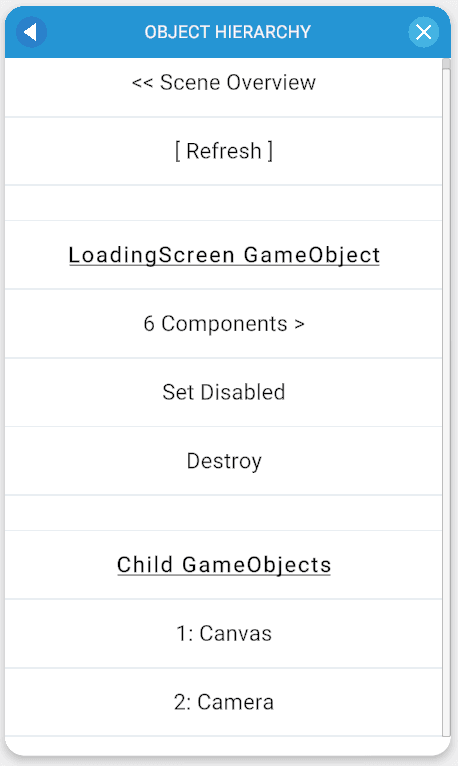

Hierarchy explorer

Just like the Unity editor, the hierarchy and all its GameObjects, Components and even variables are viewable through the debug menu. Objects and components can be enabled, disabled and destroyed. This will help a lot when debugging issues on device.

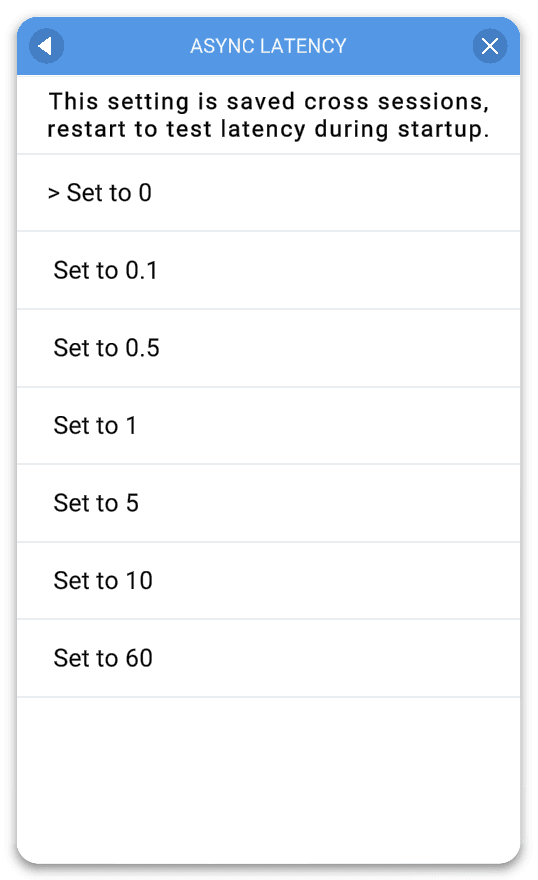

Async latency simulator

Loading assets async can result in unwanted race conditions, especially on lower end devices. To test if the code supports slow loading times, use the debug menu tool:
Debug Menu > Game State > Addressables > Async Latency
Set the latency to a high number to verify that everything works as intended even with extreme async loading times.
